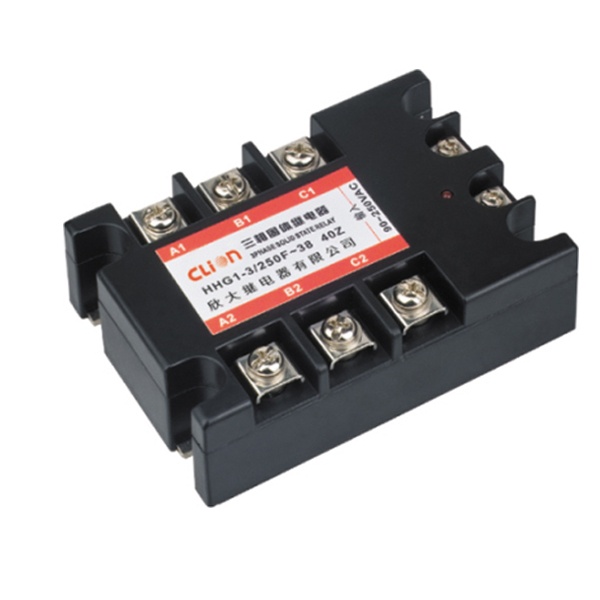

Product name : Solid State Relay DC-AC 10A-120A
Product No. : 201512793957
Manufacturer :
|
| Details: |
Model: Three Phase SSR DC-AC 10A-120A
Dimension: 106mm×75mm×32mm
Control voltage(Input): 3VDC-32VDC
Load voltage(Output): 40VAC-440VAC
Rated load: 10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A, 100A or 120A
Turn-on voltage: 3VDC
Trun-off voltage: 1VDC
Instant voltage: 1000VAC
On-state voltage drop: ＜1.6VAC
On-Off time: ≤5ms
Off-state leakage current: ≤5mA
Weight: Approx.500g |
