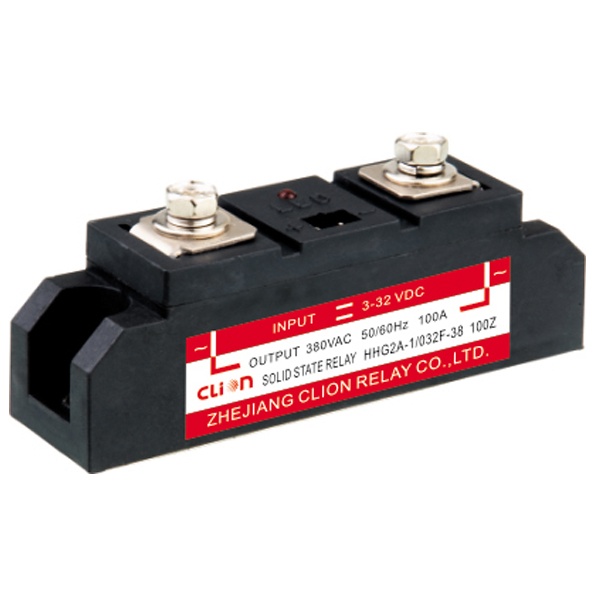

Product name : Solid State Relay DC-AC 60A-150A
Product No. : 201512794059
Manufacturer :
|
| Details: |
Model: Single Phase SSR DC-AC 60A-150A
Dimension: 94mm×25mm×38mm
Control voltage(Input): 3VDC-32VDC
Load voltage(Output): 40VAC-440VAC or 60VAC-1200VAC
Rated load: 60A, 80A, 100A, 120A or 150A
Turn-on voltage: 3VDC
Trun-off voltage: 1VDC
Instant voltage: 1200VAC or 1600VAC
On-state voltage drop: ＜1.6VAC
On-Off time: ≤10ms
Off-state leakage current: ≤10mA
Weight: Approx.150g |
