Products > Relay > Power Relay > JQX-60F Power Relay

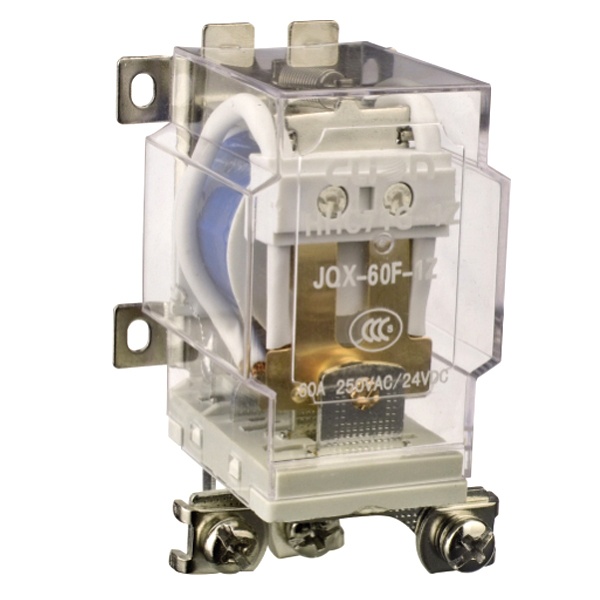

Product name : JQX-60F Power Relay
Product No. : 2015121144648
Manufacturer :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Model: JQX-60F
Dimension: 60mm×45mm×46mm
Contact configuration: SPDT
Rated resistive load: 60A 240VAC/28VDC
Rated inductive load: 12A 240VAC/28VDC
Contact material: Silver alloy
Coil voltage: DC12V, DC24V, DC36V, DC48V, DC110, DC220, AC12V, AC24V, AC36V, AC48V, AC110V, AC220V, AC240V or AC380V
Contact resistance: 50mΩ max.
Operation time: 20ms max.
Release time: 20ms max.
Mechanical endurance: 10,000,000 operations min.
Electrical endurance: 100,000 operations min.
Weight: Approx.160g
