Products > Relay > Power Relay > JQX-38F Power Relay

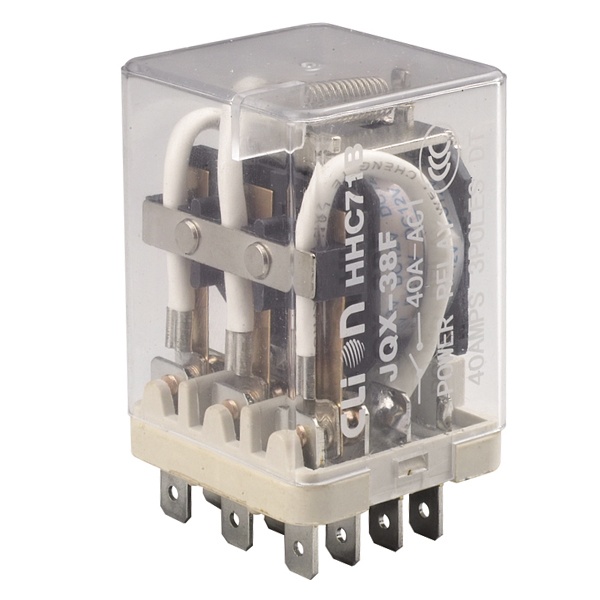

Product name : JQX-38F Power Relay

Product No. : 2015121141514

Manufacturer :

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

Model: JQX-38F

Dimension: 57mm×37mm×41mm

Contact configuration: 3PDT

Rated resistive load: 40A 240VAC/28VDC

Rated inductive load: 15A 240VAC/28VDC

Contact material: Silver alloy

Coil voltage: DC12V, DC24V, DC36V, DC48V, DC110, DC220, AC12V, AC24V, AC36V, AC48V, AC110V, AC220V, AC240V or AC380V

Contact resistance: 50mΩ max.

Operation time: 20ms max.

Release time: 20ms max.

Mechanical endurance: 10,000,000 operations min.

Electrical endurance: 100,000 operations min.

Weight: Approx.150g
