Products > Relay > Auxiliary Relay > 57.04 Auxiliary Relay

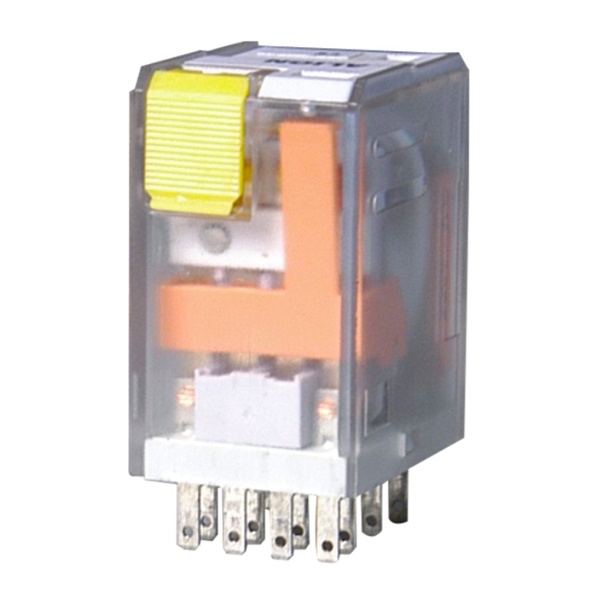

Product name : 57.04 Auxiliary Relay
Product No. : 201512213595
Manufacturer :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Model: 57.04
Dimension: 27.5mm×21mm×34mm
Contact configuration: 4PDT
Rated resistive load: 5A 240VAC/28VDC
Contact material: Silver alloy
Coil voltage: DC12V, DC24V, DC36V, DC48V, DC110, DC220, AC12V, AC24V, AC36V, AC48V, AC110V, AC220V, AC240V or AC380V
Contact resistance: 50mΩ max.
Operation time: 20ms max.
Release time: 20ms max.
Mechanical endurance: 10,000,000 operations min.
Electrical endurance: 100,000 operations min.
Weight: Approx.35g
